Weldolet & Sockolet: Sizes & Types
Weldolet Dimensions & Weights
Center Of Run-to-face Sizes
The distance between the run pipe center line and the Weldolet top-bore in mm (by pipe NPS/Schedule and Weldolet size):
| Size | Sch | 2″ | 3″ | 4″ | 6″ | 8″ | 10″ | 12″ | 14″ | 16″ | 18″ | 20″ | 24″ |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2″ | STD-40XS-80 | 70 | |||||||||||
| XXS-160 | 87 | ||||||||||||
| 3″ | STD-40XS-80 | 84 | 91 | ||||||||||
| XXS-160 | 101 | 119 | |||||||||||
| 4″ | STD-40XS-80 | 97 | 103 | 111 | |||||||||
| XXS-160 | 114 | 132 | 144 | ||||||||||
| STD-40 | 124 | 130 | 138 | 148 | |||||||||
| 6″ | XS-80 | 124 | 130 | 138 | 165 | ||||||||
| XXS-160 | 141 | 159 | 171 | 192 | |||||||||
| STD-40 | 149 | 156 | 164 | 176 | 183 | ||||||||
| 8″ | XS-80 | 149 | 156 | 164 | 191 | 197 | |||||||
| XXS-160 | 167 | 184 | 197 | 218 | 224 | ||||||||
| STD-40 | 176 | 183 | 191 | 205 | 210 | 218 | |||||||
| 10″ | XS-80 | 176 | 183 | 191 | 218 | 238 | 235 | ||||||
| XXS-160 | 194 | 211 | 224 | 245 | 251 | 265 | |||||||
| STD | 202 | 208 | 216 | 228 | 255 | 245 | 251 | ||||||
| 12″ | XS | 202 | 208 | 216 | 243 | 264 | 267 | 265 | |||||
| XXS-160 | 219 | 237 | 249 | 270 | 276 | 291 | 324 | ||||||
| 14″ | STD | 218 | 224 | 232 | 245 | 251 | 259 | 267 | 270 | ||||
| XS | 218 | 224 | 231 | 239 | 279 | 270 | 278 | 286 | |||||
| 16″ | STD | 243 | 249 | 257 | 270 | 276 | 284 | 292 | 295 | 300 | |||
| XS | 243 | 249 | 257 | 284 | 305 | 293 | 303 | 306 | 319 | ||||
| 18″ | STD | 268 | 275 | 283 | 295 | 302 | 310 | 318 | 321 | 325 | 335 | ||
| XS | 268 | 275 | 283 | 310 | 330 | 321 | 329 | 332 | 338 | 352 | |||
| 20″ | STD | 294 | 300 | 308 | 321 | 327 | 335 | 343 | 346 | 351 | 356 | 376 | |
| XS | 294 | 300 | 308 | 335 | 356 | 346 | 354 | 557 | 364 | 370 | 386 | ||
| 24″ | STD | 345 | 351 | 359 | 372 | 378 | 386 | 394 | 397 | 402 | 406 | 411 | 446 |
| XS | 345 | 351 | 359 | 386 | 406 | 397 | 405 | 408 | 414 | 421 | 429 | 449 |
Weldolet Dimensions & Weigths

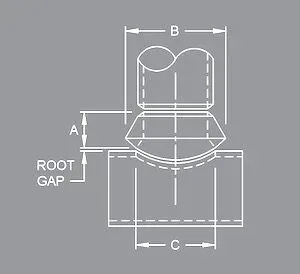

Size-on-Size Weldolet Schedule 40
Sizes in inches, weights in pounds
| Weldolet Size (inches) | A | B | C | D | Weldolet weight in lbs |
|---|---|---|---|---|---|
| 1/2 | 3/4 | 1 3/8 | 15/16 | 5/8 | 0.15 |
| 3/4 | 7/8 | 1 5/8 | 1 3/16 | 13/16 | 0.25 |
| 1 | 1 1/16 | 2 | 1 7/16 | 1 1/32 | 0.4 |
| 1 1/4 | 1 1/4 | 2 3/8 | 1 3/4 | 1 3/8 | 0.7 |
| 1 1/2 | 1 5/16 | 2 7/8 | 2 | 1 5/8 | 0.8 |
| 2 | 1 1/2 | 3 1/2 | 2 9/16 | 2 1/16 | 1.5 |
| 2 1/2 | 1 5/8 | 4 1/6 | 3 | 2 7/16 | 2.25 |
| 3 | 1 3/4 | 4 13/16 | 3 11/16 | 3 1/16 | 3.75 |
| 3 1/2 | 2 | 5 3/8 | 3 7/8 | 3 9/16 | 5 |
| 4 | 2 | 6 | 4 3/4 | 4 | 6.7 |
| 5 | 2 1/4 | 7 1/8 | 5 9/16 | 5 1/16 | 8.5 |
| 6 | 2 3/8 | 8 1/2 | 6 11/16 | 6 1/16 | 14 |
| 8 | 2 3/4 | 10 3/8 | 8 11/16 | 7 15/16 | 28 |
| 10 | 3 1/16 | 12 9/16 | 10 13/16 | 10 | 39 |
| 12 | 3 3/8 | 14 7/8 | 12 13/16 | 12 | 65 |
| 14 | 3 1/2 | 16 1/8 | 14 1/16 | 13 1/4 | 70 |
| 16 | 3 11/16 | 18 1/4 | 16 1/16 | 15 1/4 | 92 |
| 18 | 4 1/16 | 20 3/4 | 18 5/8 | 17 1/4 | 125 |
| 20 | 4 5/8 | 23 1/16 | 20 1/16 | 19 1/4 | 175 |
| 24 | 5 3/8 | 27 7/8 | 25 1/8 | 23 1/4 | 280 |
| 30 | 5 3/8 | 34 1/16 | 30 7/16 | 29 1/4 | 440 |
| 36 | 5 3/8 | 34 1/16 | 36 1/2 | 35 1/4 | 1180 |
Size-on-Size Weldolet Schedule XS
Sizes in inches, weights in pounds
| Weldolet Size (inches) | A | B | C | D | Weldolet weight in lbs |
|---|---|---|---|---|---|
| 1/2 | 3/4 | 1.375 | 15/16 | 5/8 | 0.15 |
| 3/4 | 7/8 | 1.625 | 1.1875 | 13/16 | 0.25 |
| 1 | 1.0625 | 2 | 1.4375 | 1.03125 | 0.4 |
| 1 1/14 | 1.25 | 2.4375 | 1.75 | 1.375 | 0.7 |
| 1.5 | 1.3125 | 2.875 | 2 | 1.625 | 0.9 |
| 2 | 1.5 | 3.5 | 2.5625 | 2.0625 | 1.6 |
| 2 1/2 | 1.625 | 4.0625 | 3 | 2.4375 | 2.5 |
| 3 | 1.75 | 4.8125 | 3.6875 | 3.0625 | 4.1 |
| 3 1/2 | 2 | 5.375 | 3.875 | 3.5625 | 5.1 |
| 4 | 2 | 6 | 4.75 | 4 | 7.5 |
| 5 | 2.25 | 7.125 | 5.5625 | 5.0625 | 9.5 |
| 6 | 3.0625 | 8.875 | 6.6875 | 6.0625 | 15 |
| 8 | 3.875 | 10.625 | 8.6875 | 7.625 | 32 |
| 10 | 3.5 | 12.875 | 10.4375 | 9.75 | 46 |
| 12 | 3.9375 | 15.1875 | 13 | 11.75 | 61 |
| 14 | 4.125 | 16.6875 | 14.3125 | 13 | 75 |
| 16 | 4.4375 | 18.875 | 16.5 | 15 | 115 |
| 18 | 4.6875 | 21.125 | 18.625 | 17 | 130 |
| 20 | 5 | 23.375 | 20.8125 | 19 | 187 |
| 24 | 5.5 | 27.875 | 25.125 | 23 | 316 |
| 26 | 5.75 | 30.125 | 27.25 | 25 | 370 |
Size-on-Size Weldolet Schedule 160/XXS
Sizes in inches, weights in pounds
| Weldolet Size (inches) | A | B | C | Weldolet weight in lbs |
|---|---|---|---|---|
| 1/2 | 1 1/8 | 1 3/8 | 9/16 | 0.25 |
| 3/4 | 1 1/4 | 1 3/4 | 3/4 | 0.70 |
| 1 | 1 1/2 | 2 | 1 | 0.80 |
| 1 1/4 | 1 3/4 | 2 7/16 | 1 5/16 | 1.25 |
| 1 1/2 | 2 | 2 3/4 | 1 1/2 | 1.75 |
| 2 | 2 3/16 | 3 3/16 | 1 11/16 | 2.15 |
| 2 1/2 | 2 7/16 | 3 13/16 | 2 1/8 | 3.40 |
| 3 | 2 7/8 | 4 3/4 | 2 7/8 | 6.35 |
| 4 | 3 5/16 | 6 | 3 7/8 | 10.50 |
| 5 | 3 11/16 | 7 3/8 | 4 13/16 | 14.25 |
| 6 | 4 1/8 | 8 11/16 | 5 3/4 | 30.25 |
Reducing Weldolet Schedule 40
Sizes in inches, weights in pounds
| Weldolet Size (inches) | A | B | C | Weldolet weight in lbs |
|---|---|---|---|---|
| 1/8 | 5/8 | 1 | 5/8 | 0.10 |
| 1/4 | 5/8 | 1 | 5/8 | 0.10 |
| 3/8 | 3/4 | 1 1/4 | 3/4 | 0.15 |
| 1/2 | 3/4 | 1 3/8 | 15/16 | 0.20 |
| 3/4 | 7/8 | 1 3/4 | 1 3/16 | 0.25 |
| 1 | 1 1/16 | 2 1/8 | 1 7/16 | 0.50 |
| 1 1/4 | 1 1/4 | 2 9/16 | 1 3/4 | 0.80 |
| 1 1/2 | 1 5/16 | 2 7/8 | 2 | 1.00 |
| 2 | 1 1/2 | 3 1/2 | 2 9/16 | 1.75 |
| 2 1/2 | 1 5/8 | 4 1/16 | 3 | 2.50 |
| 3 | 1 3/4 | 4 13/16 | 3 11/16 | 4.00 |
| 3 1/2 | 1 7/8 | 5 1/4 | 4 | 5.50 |
| 4 | 2 | 6 | 4 3/4 | 6.30 |
| 5 | 2 1/4 | 7 1/16 | 5 9/16 | 10.25 |
| 6 | 2 3/8 | 8 3/16 | 6 11/16 | 12.00 |
| 8 | 2 3/4 | 10 1/4 | 8 11/16 | 23.00 |
| 10 | 3 1/16 | 12 11/16 | 10 13/16 | 36.00 |
| 12 | 3 3/8 | 14 7/8 | 12 13/16 | 59.00 |
| 14 | 3 1/2 | 16 9/16 | 14 1/16 | 66.00 |
| 16 | 3 11/16 | 18 1/4 | 16 1/16 | 75.00 |
| 18 | 3 13/16 | 21 1/16 | 18 1/16 | 97.00 |
| 20 | 4 | 23 3/16 | 20 | 118.00 |
| 24 | 4 9/16 | 27 3/4 | 24 3/16 | 220.00 |
| 26 | 4 11/16 | 29 7/8 | 26 1/4 | 265.00 |
| 30 | 5 3/8 | 34 1/2 | 30 7/16 | 430.00 |
| 36 | 5 3/8 | 40 1/2 | 36 1/2 | 900.00 |
Reducing Weldolet Schedule XS
Sizes in inches, weights in pounds
| Weldolet Size (inches) | A | B | C | Weldolet weight in lbs |
|---|---|---|---|---|
| 1/8 | 5/8 | 1 | 5/8 | 0.10 |
| 1/4 | 5/8 | 1 | 5/8 | 0.10 |
| 3/8 | 3/4 | 1 1/4 | 3/4 | 0.15 |
| 1/2 | 3/4 | 1 3/8 | 15/16 | 0.20 |
| 3/4 | 7/8 | 1 3/4 | 1 3/16 | 0.30 |
| 1 | 1 1/16 | 2 1/8 | 1 7/16 | 0.50 |
| 1 1/4 | 1 1/4 | 2 9/16 | 1 3/4 | 0.90 |
| 1 1/2 | 1 5/16 | 2 7/8 | 2 | 1.10 |
| 2 | 1 1/2 | 3 1/2 | 2 9/16 | 1.75 |
| 2 1/2 | 1 5/8 | 4 1/16 | 3 | 2.60 |
| 3 | 1 3/4 | 4 13/16 | 3 11/16 | 4.10 |
| 3 1/2 | 1 7/8 | 5 1/4 | 4 | 5.60 |
| 4 | 2 | 6 | 4 3/4 | 6.40 |
| 5 | 2 1/4 | 7 1/16 | 5 9/16 | 10.40 |
| 6 | 3 1/16 | 8 5/16 | 6 11/16 | 23.00 |
| 8 | 3 7/8 | 11 1/2 | 8 11/16 | 37.00 |
| 10 | 3 11/16 | 13 3/16 | 10 7/16 | 46.00 |
| 12 | 4 1/16 | 15 5/8 | 12 1/2 | 61.00 |
| 14 | 3 15/16 | 16 | 13 13/16 | 70.00 |
| 16 | 4 3/16 | 18 3/8 | 15 7/8 | 102.00 |
| 18 | 4 3/8 | 20 3/8 | 17 15/16 | 130.00 |
| 20 | 4 11/16 | 22 15/16 | 20 1/16 | 158.00 |
| 24 | 5 1/2 | 28 1/2 | 24 3/16 | 290.00 |
| 26 | 5 3/4 | 30 1/8 | 27 1/4 | 350.00 |
Reducing Weldolet Schedule 160/XXS
Sizes in inches, weights in pounds
| Weldolet Size (inches) | A | B | C | Weldolet weight in lbs |
|---|---|---|---|---|
| 1/2 | 1 1/8 | 1 3/8 | 9/16 | 0.25 |
| 3/4 | 1 1/4 | 1 3/4 | 3/4 | 0.70 |
| 1 | 1 1/2 | 2 | 1 | 0.85 |
| 1 1/4 | 1 3/4 | 2 7/16 | 1 5/16 | 1.25 |
| 1 1/2 | 2 | 2 3/4 | 1 1/2 | 1.75 |
| 2 | 2 3/16 | 3 3/16 | 1 11/16 | 2.15 |
| 2 1/2 | 2 7/16 | 3 13/16 | 2 1/8 | 3.40 |
| 3 | 2 7/8 | 4 3/4 | 2 7/8 | 6.30 |
| 4 | 3 5/16 | 6 | 3 7/8 | 10.50 |
| 5 | 3 11/16 | 7 3/8 | 4 13/16 | 14.25 |
| 6 | 4 1/8 | 9 5/16 | 5 3/4 | 28.00 |

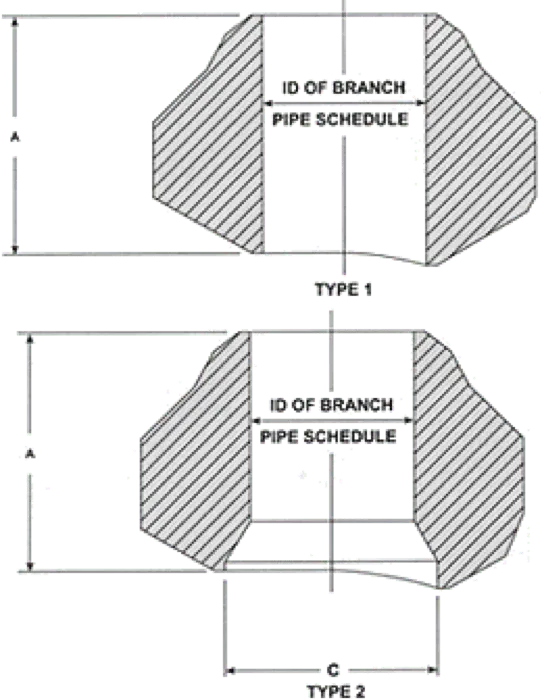

Heavy-wall Weldolets Sizes
| Run Size | 3/4 A | 3/4 C | 1 A | 1 C | 1¼ A | 1¼ C | 1½ A | 1½ C | 1¾ A | 1¾ C | 2 A | 2 C | 2¼ A | 2¼ C | 2¾ A | 2¾ C | 3 A | 3 C |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 2 7/8 | 2.906 | 3 7/32 | 2.900 | 3 3/8 | 2.906 | 3 5/8 | 2.900 | 4 1/8 | 2.900 | 4 9/16 | 2.900 | 5 | 2.900 | 5 7/8 | 2.900 | 6 1/16 | 2.900 |
| 3 1/2 | 3 1/8 | 3.359 | 3 1/4 | 3.359 | 3 7/16 | 3 359 | 3 3/4 | 3.359 | 4 3/16 | 3.359 | 4 5/8 | 3.359 | 5 1/16 | 3.359 | 6 | 3.359 | 6 5/16 | 3.359 |
| 4 | 3 5/16 | 3.843 | 3 3/8 | 3.826 | 3 1/2 | 3.828 | 3 7/8 | 3.826 | 4 3/4 | 3.826 | 4 3/4 | 3.826 | 5 3/16 | 3.826 | 6 1/8 | 3.826 | 6 9/16 | 3.826 |
| 5 | 3 3/4 | 4.812 | 3 3/4 | 4.812 | 4 | 4.812 | 4 1/4 | 4.812 | 4 3/4 | 4.812 | 5 1/4 | 4.812 | 5 3/4 | 4.812 | 6 5/8 | 4.812 | 7 3/16 | 4.812 |
| 6 | 4 1/8 | 5.750 | 4 11/32 | 5.761 | 4 1/2 | 5.760 | 4 11/16 | 5.760 | 5 1/4 | 5.760 | 5 3/4 | 5.760 | 6 1/4 | 5.760 | 7 1/4 | 5.760 | 7 13/16 | 5.760 |
| 8 | 4 3/16 | 7.625 | 4 5/8 | 7.625 | 4 7/8 | 7.625 | 5 5/32 | 7.625 | 5 3/4 | 7.625 | 6 11/32 | 7.625 | 6 15/16 | 7.625 | 8 3/32 | 7.625 | 8 11/16 | 7.625 |
| 10 | 4 1/4 | 9.750 | 4 27/32 | 9.750 | 5 | 9.562 | 5 5/16 | 9.562 | 5 15/16 | 9.562 | 6 9/16 | 9.562 | 7 3/16 | 9.562 | 8 7/16 | 9.562 | 9 1/16 | 9.562 |
| 12 | 4 3/8 | 11.750 | 5 3/32 | 11.750 | 5 3/8 | 11.375 | 5 11/16 | 11.375 | 6 5/16 | 11.375 | 6 15/16 | 11.375 | 7 9/16 | 11.375 | 8 13/16 | 11.375 | 9 7/16 | 11.375 |
| 14 | 4 1/2 | 13 | 5 1/4 | 13 | 5 1/2 | 12.500 | 5 13/16 | 12.500 | 6 5/16 | 12.500 | 6 15/16 | 12.500 | 7 9/16 | 12.500 | 8 13/16 | 12.500 | 9 7/16 | 12.500 |
| 16 | 4 11/16 | 15 | 5 7/8 | 15 | 6 | 14.312 | 6 7/16 | 14.310 | 6 5/8 | 14.310 | 7 1/4 | 14.310 | 7 7/8 | 14.310 | 9 1/8 | 14.310 | 9 3/4 | 14.310 |
| 18 | 5 1/8 | 17 | 6 1/2 | 17 | 6 1/2 | 16.125 | 6 1/2 | 16.126 | 6 13/16 | 16.126 | 7 7/16 | 16.126 | 8 7/32 | 16.126 | 9 13/32 | 16.126 | 10 1/32 | 16.126 |
| 20 | 5 5/8 | 19 | 6 3/4 | 19 | 7 | 17.937 | 7 9/16 | 17.938 | 7 25/32 | 17.938 | 8 3/32 | 17.938 | 8 21/32 | 17.938 | 9 29/32 | 17.938 | 10 15/32 | 17.938 |
| 24 | 6 1/2 | 23 | 7 5/8 | 23 | 8 | 21.564 | 8 23/32 | 21.564 | 8 31/32 | 21.564 | 9 13/16 | 21.568 | 10 1/2 | 21.568 | 12 9/16 | 21.564 | 10 21/32 | 21.564 |
Weldolet Run Sizes Combinations
Weldolet Size Sch. STD/XS
| Run Size | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 3½ | 4 | 5 | 6 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3/8 | 3/8 | 1/2 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 5 | 6 | |
| 1/2 | 1/2 | 1-3/4 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 5 | 6 | 8 | |
| 1-3/4 | 1-3/4 | 21/2-11/4 | 1 | 1 1/2 - 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 5 | 6 | 8 | 10 | |
| 2 1/2 - 1 1/4 | 21/2-11/4 | 36-3 | 1 1/2 - 1 1/4 | 2 1/2 - 2 | 2 | 2 1/2 | 3 | 4 - 3 1/2 | 4 | 5 | 6 | 8 | 10 | 14-12 | |
| 36-3 | 36-3 | flat | 2 1/2 - 2 | 5-3 | 2 1/2 | 3 1/2 - 3 | 4 - 3 1/2 | 5 | 5 | 6 | 8 | 10 | 12 | 16 | |
| flat | flat | 8-3 | 12-6 | 3 1/2 - 3 | 5-4 | 6-5 | 6 | 6 | 8 | 10 | 14-12 | 14 | 18 | ||
| 36-10 | 36-14 | 5 - 4 | 8-6 | 12-8 | 10-8 | 8 | 10 | 14-12 | 20-16 | 18-16 | 22-20 | ||||
| flat | flat | 10 - 6 | 18-10 | 24-14 | 18-12 | 12-10 | 14-12 | 20-16 | 22 | 22-20 | 28-24 | ||||
| 3/4 - 1/2 | 36 - 12 | 36-20 | 36-26 | 36-20 | 18-14 | 20-16 | 36-24 | 36-24 | 28-24 | 36-30 | |||||
| 36 - 1 | flat | flat | flat | flat | 36-20 | 36-24 | flat | flat | 36-30 | flat | |||||
| flat | flat | flat | flat | ||||||||||||
| Outlet sizes 8, 10, 12, 14, 16. 18, 24, 26. 20 orders to specific size combinations. | Size consolidation for Weldolets only |
Weldolet Size Sch. XXS/160
| Run Size | 1/2 | 3/4 | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 4 |
|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 1 3/4 | 1 | 1 1/2 - 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | |
| 1 1/4 - 3/4 | 2 - 1 1/4 | 2 1/2 -1 1/4 | 2 1/2 -2 | 2 1/2 - 2 | 2 1/2 | 3 | 3 1/2 | 6 | |
| 36 - 1 1/2 | 6 - 2 1/2 | 10-3 | 10-3 | 3 1/2 -3 | 3 1/2 -3 | 3 1/2 | 4 | 8 | |
| flat | 36-8 | 36-12 | 36-12 | 8-4 | 5-4 | 4 | 5 | 10 | |
| flat | flat | flat | 20-10 | 8-6 | 5 | 6 | 12 | ||
| 22 | 18-10 | 8-6 | 8 | 14 | |||||
| 36-24 | 36-20 | 12-10 | 10 | 16 | |||||
| flat | flat | 18-14 | 12 | 18 | |||||
| 36-20 | 14 | 20 | |||||||
| flat | 16 | 22 | |||||||
| 18 | 24 | ||||||||
| 20 | |||||||||
| 22 | |||||||||
| 24 | |||||||||
| flat |

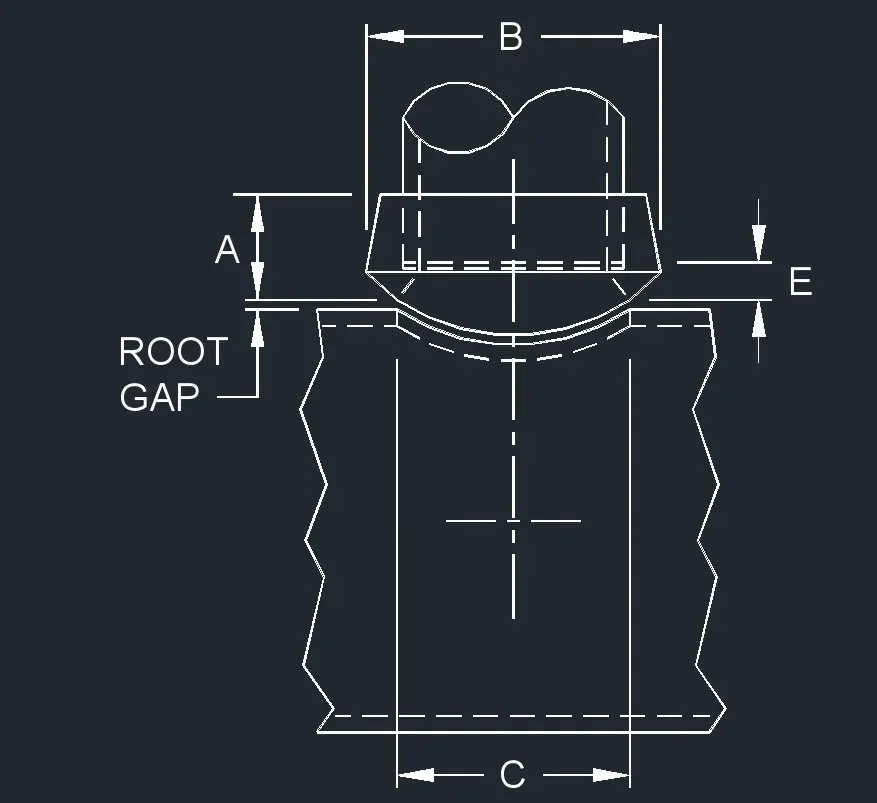

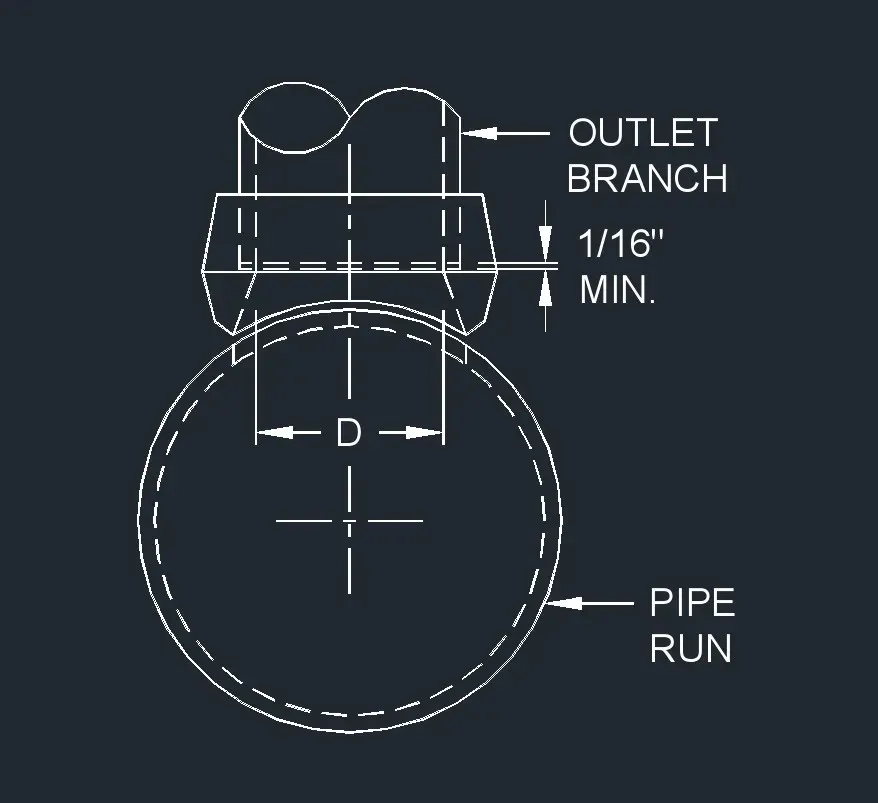

Sockolets Dimensions & Weigths
Sockolet class 3000 “Size on Size”
| Outlet Size (NPT) | A | B | C | D | E | Approx. Weight (lb) |
|---|---|---|---|---|---|---|
| 1/2 | 1 | 1 3/8 | 15/16 | 0.622 | 17/32 | 0.15 |
| 3/4 | 1 1/16 | 1 5/8 | 1 3/16 | 0.824 | 15/32 | 0.25 |
| 1 | 1 5/16 | 2 | 1 7/16 | 1.049 | 23/32 | 0.45 |
| 1 1/4 | 1 5/16 | 2 3/8 | 1 3/4 | 1.380 | 9/16 | 0.65 |
| 1 1/2 | 1 3/8 | 2 7/8 | 2 | 1.610 | 21/32 | 0.85 |
| 2 | 1 1/2 | 3 1/2 | 2 9/16 | 2.067 | 15/16 | 1.40 |
| 2 1/2 | 1 9/16 | 4 1/16 | 3 | 2.469 | 3/4 | 2.25 |
| 3 | 1 3/4 | 4 13/16 | 3 11/16 | 3.068 | 15/16 | 3.75 |
| 3 1/2 | 1 11/16 | 5 3/8 | 4 7/16 | 3.548 | 11/16 | 4.30 |
| 4 | 1 7/8 | 6 1/16 | 4 3/4 | 4.026 | 1 1/16 | 6.60 |
| 5 | 2 7/16 | 7 1/4 | 5 1/4 | 5.047 | 1 | 9.00 |
| 6 | 2 11/16 | 8 11/16 | 6 1/16 | 6.065 | 1 3/16 | 15.50 |
Notes:
- Class 3000 is to be used with schedule 80 pipes
- Dimensions and tolerances by ASME B16.11 and MSS SP-97
- Flat Sockolets are used on welding caps, elliptical heads, and flat surfaces
- Each outlet size is available to fit any run curvature.
Sockolet class 6000 “Size on Size”
| Outlet Size (NPS) | A | B | C | D | E | Approx. Weight (lb) |
|---|---|---|---|---|---|---|
| 1/2 | 1 1/4 | 1 23/32 | 3/4 | 0.466 | 7/8 | 0.50 |
| 3/4 | 1 7/16 | 1 61/64 | 1 | 0.614 | 7/8 | 0.80 |
| 1 | 1 9/16 | 2 7/16 | 1 5/16 | 0.815 | 15/16 | 1.30 |
| 1 1/4 | 1 5/8 | 2 23/32 | 1 1/2 | 1.160 | 13/16 | 1.60 |
| 1 1/2 | 1 11/16 | 3 1/4 | 1 15/16 | 1.338 | 7/8 | 2.00 |
| 2 | 2 1/16 | 4 1/32 | 2 3/4 | 1.689 | 1 3/16 | 5.15 |
-
Notes:
-
Class 6000 is to be used with schedule 160 pipe.
-
Dimensions and tolerances by ASME B16.11 and MSS SP-97
-
Flat Sockolets are used on welding caps, elliptical heads, and flat surfaces.
-
Outlet combinations fit many run pipe sizes, and fittings are marked accordingly

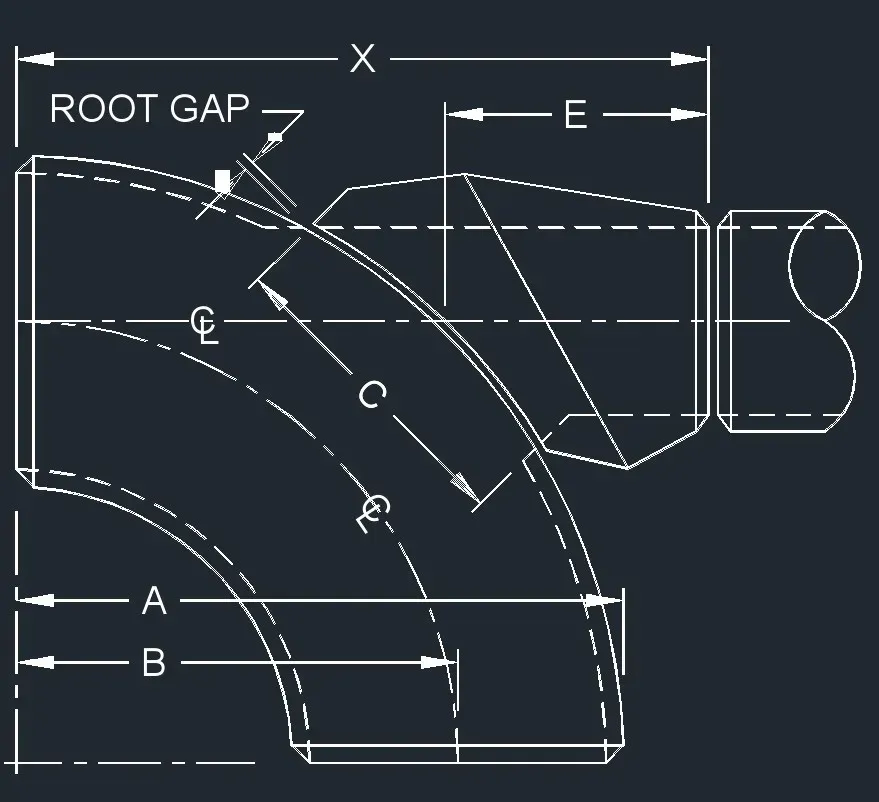

Elbolet Dimensions
| Elbow Size (NPS) | Outlet Size (NPS) | CL 3000 C | CL 3000 E | CL 6000 C | CL 6000 E |
|---|---|---|---|---|---|
| 36 - 3/4 | 1/4 | 1 1/2 | 1 19/32 | 1 1/2 | 1 19/32 |
| 36 - 3/4 | 3/8 | 1 1/2 | 1 19/32 | 1 1/2 | 1 19/32 |
| 36 - 3/4 | 1/2 | 1 1/2 | 1 19/32 | 1 23/32 | 1 7/8 |
| 36 - 1 | 3/4 | 1 23/32 | 1 7/8 | 2 1/4 | 2 1/4 |
| 36 - 2 | 1 | 2 1/4 | 2 1/4 | 2 7/8 | 2 1/2 |
| 36 - 2 | 1 1/4 | 2 7/8 | 2 1/2 | 3 1/8 | 2 11/16 |
| 36 - 2 | 1 1/2 | 3 1/8 | 2 11/16 | 4 3/16 | 3 1/4 |
| 36 - 3 | 2 | 4 3/16 | 3 1/4 | - | - |
Order to Specific Elbow Sizes (Buttweld only)
| Elbow Size (NPS) | Outlet Size (NPS) | CL 3000 C | CL 3000 E | CL 6000 C | CL 6000 E |
|---|---|---|---|---|---|
| - | 2 1/2 | 4 3/16 | 3 1/4 | bw only | bw only |
| - | 3 | 5 1/16 | 3 7/8 | bw only | bw only |
| - | 4 | 6 5/8 | 4 13/16 | bw only | bw only |
| - | 6 | 9 3/8 | 6 1/2 | bw only | bw only |
| - | 8 | 13 5/16 | 8 1/16 | bw only | bw only |
| - | 10 | 17 1/32 | 10 3/8 | bw only | bw only |
| - | 12 | 19 5/8 | 11 1/8 | bw only | bw only |
Notes:
- Class 3000 is to be used for Schedule 80 pipes
- Class 6000 is to be used for Schedule 160 pipes
- Dimensions and tolerances acc. to ASME B16.9, ASME B16.25, and, MSS SP-97.
- Dimensions and tolerances under ANSI/ASME B16.11
- Threaded ends per ANSI/ASME B1.20.1
Leave a Comment
Have a question or feedback? Send us a message.
Previous Comments
I need weldolet and sockolet for size 1650mm
Dear Sir, kindly quote your best price for the following below items. S/N Description Unit Unit Ord. QTY 1 32″ X 1″ WELDOLET REDUCING SIZE, ASME B16.25, Sch. 160, WT 6.35 mm (Material grade :ASTM A860 WPHY 52) Nos. 10 2 32″ X 2″ WELDOLET REDUCING SIZE, ASME B16.25, Sch. 160, WT. 8.7 mm (Material grade :ASTM A860 WPHY 52) Nos. 10 3 32″ X 4″ WELDOLET REDUCING SIZE, ASME B16.25, Sch. 160, WT. 13.5 mm (Material grade :ASTM A860 WPHY 52). Nos. 12 4 WN FLANGE 1″, RTJ, #1500 ASME B16.5, WT. 6.35 mm (Material Grade: ISO 5590-3 450-LS) Nos. 10 5 WN FLANGE 2″, RTJ, #1500 ASME B16.5, WT. 8.7 mm (Material Grade: ISO 5590-3 450-LS) Nos. 10 6 WN FLANGE 4″, RTJ, #1500 ASME B16.5, WT. 13.5 mm (Material Grade: ISO 5590-3 450-LS) Nos. 12 7 WN FLANGE 32″, RTJ, # 1500 ASME B16.5, WT. 26.3 mm (Material Grade: ISO 5590-3 450-LS) Nos. 1 8 BLIND FLANGE 1″, RTJ, #1500 ASME B16.5 (Material Grade: ISO 5590-3 450-LS) Nos. 10 9 BLIND FLANGE 2″, RTJ, #1500 ASME B16.5 (Material Grade: ISO 5590-3 450-LS) Nos. 10 10 BLIND FLANGE 4″, RTJ, #1500 ASME B16.5 (Material Grade: ISO 5590-3 450-LS) Nos. 12 19 1″ FLANGE BALL VALVE, RTJ, # 1500 FULL BORE ASME B16.10 (Material Grade : ASTM A350 ) Nos. 8 20 2″ FLANGE BALL VALVE, RTJ, # 1500 FULL BORE ASME B16.10 (Material Grade : ASTM A350 ) Nos. 8 21 4″ FLANGE BALL VALVE, RTJ # 1500 FULL BORE ASME B16.10 (Material Grade : ASTM A350 ) Nos. 6
My Header/Run Pipe 52″ piggable, we would like insert 24″ weldolet, is possible to add custom bar to avoid pig stuck during pigging operation
I need offer for below items: Sl Description of Materials Specifications, if any Code/Color/ Grade Unit Required Qty Material 1 Weldolet DN25 Steel 20 TU 14-3-190-2004 Nos 6 2 Weldolet T DN20 Steel 20 TU 14-3-190-2004 Nos 8 3 Weldolet TDN15 Steel 20 TU 14-3-190-2004 Nos 6 4 Socket DR 100 GOST 5525-88 Nos 14 Cast iron
Dear Sir, We are currently looking for the products in the list below. Could you pls send us your offer below listed products? These materials are required on a regular basis. Please send commercial offers with the best prices and prompt: 1. Availability 2. Terms of delivery to Kazakhstan. (Pls mention in your quote – delivery time) № Short Description Long Description Qty Unit 1 WELDOLET:PIPE WELDOLET:PIPE;SIZE:10 IN X 2 IN,WT 14,27 MM /SCH 160 A694 F60;RATING:;MATERIAL:IN ACCORDANCE WITH NACE MR0175. FORGED CARBON STEEL FOR LOW TEMP SERVICE. ASTM-A694 GRADE F60;TYPE:BRANCH FITTING BUTT-WELD;SPECIFICATION:IN ACCORDANCE WITH TCO SPEC. L-ST-2009 LATEST REVISION;GRADE:;STANDARDS:ASME B16.9/ASME B31.3/MS;SHORT RUSSIAN TRANSLATION:ОТВОДНОЙ ПАТРУБОК; 8 Ea 2 WELDOLET 8INX2IN WT 11.1MM/SCH 160 A694 F60 WELDOLET 8INX2IN WT 11.1MM/SCH 160 A694 F60 BRANCH FITTING BUTT-WELD, TYPE – WELDOLET, HEADER WEIGHT – 11.1MM WALL THICKNESS, BRANCH WEIGHT – SCHEDULE 160, MATERIAL- IN ACCORDANCE WITH NACE MR0175 FORGED CARBON STEEL FOR LOW TEMP SERVICE ASTM-A694 GRADE F60 IN ACCORDANCE WITH W-ST-2029 REV.1. MATERIAL TO;SHORT RUSSIAN TRANSLATION:БОБЫШКА ПРИВАРНАЯ; 4 Ea 3 WELDOLET:PIPE;SIZE:6INX2IN,WT 9.53 MM/SCH 160 A694 F60, WELDOLET:PIPE;SIZE:6INX2IN,WT 9.53 MM/SCH 160 A694 F60, ITEM BRANCH FITTING BUTT-WELD;RATING:;MATERIAL:;TYPE:WELDOLET HEADER WEIGHT – 9.53 MM WALL THICKNESS. BRANCH WEIGHT – SCHEDULE 160 WALL THICKNESS;SPECIFICATION:IN ACCORDANCE WITH NACE MR0175 / ISO 15156. FORGED CARBON STEEL FOR LOW TEMP SERVICE. ASTM A694 GRADE F60.STANDARDS – ASME B16.9 /ASME B31.3/MSS-SP-97 INSPECTION REQUIREMENTS SHALL INCLUDE BS EN 10204. 3.2 IN ACCORDANCE WITH TCO SPEC. L-ST-2009 LATEST REVISION;GRADE:;STANDARDS:;ADDITIONAL INFO:;SHORT RUSSIAN TRANSLATION:БОБЫШКА; 2 Ea Thank you and looking forward to your reply!
Hello, Kindly send the best price for the item below; Weldolet, 10 In X 3/4 In, Schedule 160, CS, ASTM A105, MSS SP-97 QUANTITY: 25 pieces Kindly treat as urgent, thank you.
I need 170 pieces of steel 14″x3″ weldolet. Can you make it for me? Best regards Wira Sinto
Please send all your inquires to [email protected] Contact: 00971545476126 Urgent requirements are responded on timely manner.
Kindly mail all your requirements to [email protected] Call or Whatsapp: 00919823458877
Bonjour, pourrions-nous avoir les articles ci-dessous: -Weldolet 18″-10″ x 2″ Schedule 160 Piping class: B03S Acier au carbone ASTM A105 ASME B16.25 & MSS SP 97 Service H2S niveau 1 selon NACE-MR-01-75/ISO 15156 Spécifications applicables GS EP PVV 144 et 612 Imposition technique: Ceq inférieur ou égal à 0,42 Certificats matières 3.1 suivant EN 10204 -Weldolet 20″-16″ x 3″ Sch 80 Acier carbone ASTM A234 WPB/ASME B 31.3 Piping class: D51C (Nkossa) Service H2S niveau 1 selon nace-MR-01-75 / ISO 15156 Matériel conforme à la GS.EP.PVV 144 & GS EP PVV 612 Certificats matières: 3.1 suivant EN 10204. Merci de nous faire parvenir un devis incoterm CIF Port autonome de Pointe-Noire République du Congo
Bonjour, Pourrions-nous avoir les articles ci-dessous: -Weldolet 18″ – 10″ x 2″ Schedule 160 Piping class: B03S Acier au carbone ASTM A105 ASME B16.25 & MSS SP 97 Service H2S niveau 1 selon NACE-MR-01-75/ISO 15156 Spécifications applicables GS EP PVV 144 et 612 Imposition technique: Ceq inférieur ou égal à 0,42 Certificats matières 3.1 suivant EN 10204 -Weldolet 20″ – 16″ x 3″ Sch 80 Acier carbone ASTM A234 WPB/ASME B 31.3 Piping class: D51C (Nkossa) Service H2S niveau 1 selon nace-MR-01-75 / ISO 15156 Matériel conforme à la GS.EP.PVV 144 & GS EP PVV 612 Certificats matières: 3.1 suivant EN 10204. Merci de nous faire parvenir un devis incoterm CIF Port autonome de Pointe-Noire République du Congo
Dear Sir, We can provide you products for all your requirements for Branch fittings, forged fittings, flanges, fasteners, pipes & tubes. Kindly contact us on +919867815181 for fastest response you can also email us on [email protected] Regards, RANDHIR METAL AND ALLOYS PVT LTD
Please send your inquiries for Flanges, Fittings to us at [email protected]
We are manufacturer of Pipe Fittings and Flanges in Stainless Steel, Carbon Steel & Alloy Steel. Please send us all your inquiry for Fittings and Flanges at [email protected]
