Hydrostatic Test: Vessels & Piping

What Is a Hydrostatic Test?

A hydrostatic test (hydrotest) fills pressure equipment with water (or another incompressible liquid) and pressurizes it to a level above the normal operating pressure to verify structural integrity and leak-tightness before the system enters service. If the equipment holds the test pressure without leaking, deforming, or rupturing, it passes.

Hydrostatic testing is the preferred method for pressure testing because water is nearly incompressible: if a weld or joint fails during the test, the energy released is minimal, typically a drip or a small spray. Compare this with a pneumatic failure, where compressed gas releases stored energy explosively. That fundamental physics difference is why every major piping and pressure vessel code specifies hydrostatic testing as the default method.

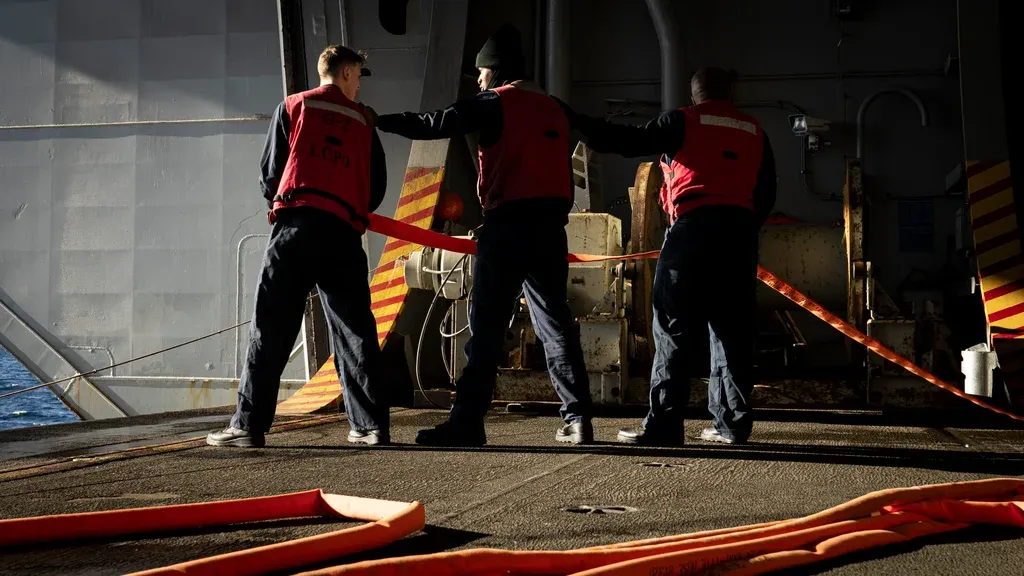

Hydrostatic pressure testing

A hydrostatic test is a mandatory non-destructive test for pressure vessels, piping systems, pipelines, boilers, and storage tanks. It remains the most reliable single method for proving both leak-tightness and structural strength. No alternative test replaces it completely.

Purpose and Advantages

Purpose	Details
Leak detection	Confirms no loss of containment through cracks, pinholes, or weld defects
Strength verification	Confirms equipment can withstand maximum operating pressure safely
Durability assessment	Evaluates structural integrity after repairs, modifications, or extended service
Regulatory compliance	Satisfies mandatory safety certifications in most industries
Quality assurance	Validates fabrication, welding, and assembly workmanship in one test

Special Considerations

• Water-sensitive equipment: Some equipment cannot tolerate water exposure; consider pneumatic testing as an alternative (higher risk)
• Test water disposal: Water with additives or dyes must be disposed of per environmental regulations
• Correct test pressure: Excessive pressure damages equipment; insufficient pressure provides inadequate verification

Equipment Requiring Hydrostatic Testing

Equipment Type	Application
Pressure vessels	Tanks, boilers, air tanks, gas cylinders
Pipelines and piping systems	Oil & gas, chemical plants, water distribution
Storage tanks	Above-ground and underground (water, chemicals, oil, gas)
Fire extinguishers	Periodic requalification for emergency readiness
Gas cylinders	Industrial, medical, and diving applications
Sprinkler systems	Fire suppression systems
Industrial hoses	Firefighting and high-pressure applications
Valves	High-pressure valve bodies and seats (per API 598)
Heat exchangers	Shell-side and tube-side verification
Boiler components	Tubes, drums, and pressure parts

Test Pressure Calculation

The test pressure is the single most important number in any hydrotest. It must be high enough to prove the system’s integrity with a margin of safety, but not so high that it damages the weakest component.

ASME B31.3 (Process Piping)

The standard formula for hydrostatic test pressure per ASME B31.3 is:

P_test = 1.5 x P_design x (S_t / S_d)

Symbol	Definition	Notes
P_test	Hydrostatic test pressure	The pressure applied during the test
P_design	Design pressure of the piping system	As specified in the piping specification
S_t	Allowable stress at test temperature	From ASME B31.3 Table A-1, at ambient/test temperature
S_d	Allowable stress at design temperature	From ASME B31.3 Table A-1, at design temperature
1.5	Test factor	Standard multiplier for hydrostatic testing

When the test temperature is close to ambient (which is the case for most hydrotests), the stress ratio S_t/S_d is approximately 1.0 for carbon steel, and the formula simplifies to: P_test = 1.5 x P_design.

ASME Section VIII, Division 1 (Pressure Vessels)

For pressure vessels, ASME BPVC Section VIII, Division 1, paragraph UG-99 requires:

P_test = 1.3 x MAWP x (stress ratio)

The stress ratio adjusts for the difference between allowable stress at test temperature and design temperature. The test must be held long enough for a complete visual examination of all joints and connections.

Test Pressure Summary by Code

Code	Application	Test Pressure	Notes
ASME B31.3	Process piping	1.5 x design pressure x (S_t / S_d)	Most common for plant piping
ASME B31.1	Power piping	1.5 x design pressure (not less than design + 2 psi)	Boiler and power plant piping
ASME B31.4	Liquid pipelines	1.25 x MOP (maximum operating pressure)	Oil and liquid transportation
ASME B31.8	Gas transmission	1.25 to 1.5 x MOP (depends on class location)	Gas pipeline, Class 1 through 4
ASME BPVC Sec. VIII Div. 1	Pressure vessels	1.3 x MAWP x (stress ratio)	Vessels, heat exchangers, reactors
EN 13480	European metallic piping	1.43 x design pressure (for steel)	Per manufacturer, typically 30 min hold
API 598	Valve shell test	1.5 x rated pressure at 38 deg C	Production test at valve manufacturer

Practical Tip

The stress ratio in B31.3 (S_t / S_d) adjusts for the difference in allowable stress at test temperature vs. design temperature. At ambient temperature, where most hydrotests are performed, this ratio is usually close to 1.0 for carbon steel, so the practical test pressure is roughly 1.5x design. For high-design-temperature systems, this ratio can push the calculated test pressure significantly higher.

Critical Constraint

The test pressure must never exceed the yield strength of the weakest component in the system. This often governs for high-design-temperature systems where the stress ratio pushes the calculated test pressure above what the flanges or fittings can safely handle at ambient. Always check the flange rating per ASME B16.5 at test temperature.

Step-by-Step Hydrotest Procedure

1. Preparation

• Review and approve the test package: piping isometrics, test boundary drawing, test medium specification, calculated test pressure
• Install test blinds, spectacle blinds, or blind flanges at all open ends to define the test boundary
• Remove or isolate all instruments, control valves, relief valves, and expansion joints that cannot withstand the test pressure
• Install calibrated pressure gauges at the highest and lowest points (minimum two independent gauges)
• Set up a chart recorder or data logger for continuous pressure and temperature recording
• Verify all PPE is available and the safety perimeter is established

2. Filling

• Fill the system with water from the lowest point, using clean treated water appropriate for the piping material
• Open all high-point vents and keep them open until water flows freely (this removes all trapped air)
• For large-diameter piping and vessels, fill at a controlled rate to avoid water hammer

3. Pressurization

• Close all vents once the system is completely liquid-filled
• Pressurize gradually in controlled increments: 25%, 50%, 75%, then 100% of test pressure
• Hold at each increment for approximately 5 minutes to check for obvious leaks
• Monitor gauges continuously; do not exceed the calculated test pressure at any point in the system (including static head at the lowest point)

4. Hold at Test Pressure

• Maintain the calculated test pressure for the specified hold time (see table below)
• Record pressure and temperature continuously throughout the hold period
• Temperature stability is critical: a 1 deg C change in water temperature can cause a pressure change of 1-3 bar in a rigid system

5. Inspection

• After the hold period, reduce pressure to design pressure (not test pressure)
• Walk down the entire test section and visually inspect all welds, flanged connections, threaded joints, and valve packings
• Any visible leak, seepage, weeping, or deformation constitutes a failure
• Use dye penetrant testing or UT for closer examination if required

6. Depressurization and Draining

• Slowly release pressure through a controlled vent or drain valve
• Never open a vent valve fully under pressure; rapid depressurization can damage equipment
• Drain the system completely; use compressed air or nitrogen to blow out residual water from low points
• For systems entering gas service, cryogenic service, or instrument air service, additional drying (vacuum drying or nitrogen purging) is required

7. Documentation

• Complete the hydrotest certificate with all test parameters, hold time, pressure/temperature charts, and inspection results
• Obtain sign-off from the responsible engineer, client representative, and third-party inspector (if applicable)
• File all records as part of the permanent equipment documentation package

Pro Tip

Always request a pre-test meeting with the client and contractor before major hydrotests. Align on hold points, test duration, acceptance criteria, and who signs off. Misunderstandings here cause expensive delays.

Air Pocket Hazard

Never pressurize a system with trapped air. Compressed air stores energy that can release violently during depressurization or failure. Always vent high points and verify the system is completely liquid-filled before pressurizing.

Hold Time Requirements

Code / Standard	Application	Minimum Hold Time	Typical Project Specification
ASME B31.3	Process piping	10 minutes	30 minutes to 1 hour
ASME B31.1	Power piping	10 minutes	30 minutes to 1 hour
ASME B31.4	Liquid pipelines	4 hours	4-8 hours
ASME B31.8	Gas transmission	8 hours	8-24 hours
ASME Sec. VIII	Pressure vessels	Long enough for full visual inspection	Per vessel size and complexity
DNV-ST-F101	Subsea pipelines	24 hours	24 hours (strength) + 24 hours (leak)
EN 13480	European piping	Per manufacturer	30 minutes typical

Most project specifications go beyond the code minimums. A typical EPC spec calls for a 30-minute to 1-hour hold at test pressure after stabilization, followed by pressure reduction to design pressure for visual examination of all joints, welds, and connections. Pipeline projects routinely specify 4 to 24 hours depending on length and criticality.

Test Medium Selection

The choice of test medium is not always straightforward. Water is the default, but its chemistry must be controlled to avoid damaging the equipment being tested.

Water Quality Requirements

Parameter	Carbon Steel	Stainless Steel (300 series)	Duplex / Super Duplex
Chloride content	No strict limit (potable water acceptable)	< 50 ppm (demineralized preferred)	< 25 ppm (strict control)
pH	6.0 - 8.5	6.0 - 8.0	6.0 - 8.0
Corrosion inhibitor	Recommended (sodium nitrite or similar)	Not required if drained promptly	Not required if drained promptly
Temperature	Above 5 deg C (above MDMT)	Above 5 deg C	Above 5 deg C
Post-test action	Drain; inhibit if not commissioning immediately	Drain and dry within 24 hours	Drain and dry immediately

Stainless Steel Warning

For stainless steel systems, always use demineralized or chloride-free water. Even short exposure to chlorinated water above ambient temperature can cause stress corrosion cracking. This has killed equipment on more than one project. Specify < 50 ppm chlorides in the test package and verify with a test certificate for the water source.

Cold Weather Testing

When ambient temperatures are near or below freezing, water-based testing requires special measures:

• Glycol-water mix: Add ethylene glycol (25-50% by volume) to depress the freezing point. Make sure the glycol is compatible with the piping material and process fluid
• Heated water: Use pre-heated water and insulate the test section to maintain temperature above 5 deg C
• Continuous circulation: Keep the water moving through the system to prevent localized freezing in dead legs
• Anti-freeze disposal: Glycol-water mixtures must be collected and disposed of per environmental regulations; never discharge to storm drains

Temperature Requirement

The test water temperature must be above the Minimum Design Metal Temperature (MDMT) of the piping materials. Testing below MDMT risks brittle fracture, particularly in carbon steel. Most project specifications set a minimum test temperature of 5 deg C (40 deg F).

Acceptance Criteria

A hydrostatic test is considered successful when all of the following conditions are met:

Criterion	Requirement
Pressure hold	No pressure drop during the hold period beyond what can be attributed to thermal effects
Visual inspection	No visible leaks, weeping, seepage, or moisture at any weld, flange, fitting, or valve packing
Permanent deformation	No visible bulging, distortion, or permanent set in any component
Gauge agreement	Both independent pressure gauges read within acceptable tolerance of each other
Chart record	Continuous pressure-temperature chart shows a stable plateau throughout the hold period

Pressure Variation

Minor pressure fluctuations during the hold period are common and do not automatically constitute a failure. Temperature changes cause thermal expansion or contraction of the test water, which directly affects pressure. A properly documented temperature correction demonstrates that any observed pressure change is thermal, not a leak. Schedule hydrotests during periods of stable ambient temperature (early morning or overcast days) and allow the water to equalize in temperature before starting the hold clock.

Hydrostatic Test vs. Pneumatic Test vs. Leak Test

Parameter	Hydrostatic Test	Pneumatic Test	Sensitive Leak Test
Test medium	Water (incompressible liquid)	Air, nitrogen, or inert gas	Helium or halogen tracer gas
Test pressure (B31.3)	1.5 x design pressure	1.1 x design pressure	System-specific (often low pressure)
Stored energy	Low (water barely compresses)	Very high (gas is compressible)	Low to moderate
Safety risk	Low (drip on failure)	High (explosive failure possible)	Low
Leak sensitivity	Moderate (visual detection)	Moderate (soap bubble test)	Very high (10^-6 mbar-L/s)
Residual medium	Must drain and possibly dry	No residual liquid	No residual liquid
Weight on structure	Full water weight (may be limiting)	Negligible	Negligible
NDE requirement before test	Standard NDE per code	Enhanced NDE required (ASME B31.3)	Application-dependent
Primary application	Default method for most systems	When water is not feasible	Vacuum, cryogenic, high-purity systems
Code reference	ASME B31.3 Para. 345.4	ASME B31.3 Para. 345.5	ASME B31.3 Para. 345.8

When Pneumatic Testing Is Permitted

Pneumatic testing may be used instead of hydrostatic testing when:

1. The system cannot be filled with water due to structural support limitations (water weight exceeds the design capacity of pipe racks or platforms)
2. Moisture contamination is unacceptable (oxygen systems, chlorine systems, instrument air, cryogenic piping)
3. The piping cannot be drained or dried adequately after the test (complex geometry with dead legs)
4. Freezing conditions make hydrotest impractical and glycol is not acceptable
5. The piping has refractory lining that would be damaged by water contact

Pneumatic Test Safety

Pneumatic testing requires a documented risk assessment, an exclusion zone based on stored-energy calculations (typically 15-30 meters minimum), a safety relief valve set at 110% of test pressure, and incremental pressurization with hold periods. All non-essential personnel must evacuate during pressurization. ASME B31.3 requires preliminary examination (100% visual, and potentially additional NDE) of all welds before a pneumatic test because the consequences of a joint failure are far more severe than during a hydrotest.

Safety Precautions During Testing

Practice	Requirement
Risk assessment	Identify hazards and implement safety measures before any pressure test
Personnel qualification	Only trained personnel familiar with the equipment and applicable standards
Safety perimeter	Establish exclusion zone around the test area; barricade and post warning signs
Emergency procedures	Documented response plans for equipment failure, including first aid and spill containment
PPE	Safety glasses, hard hat, steel-toe boots minimum; face shield near high-pressure connections
Gauge protection	Use gauge guards or remote reading to protect personnel from gauge blowout
Communication	Designate a test supervisor; maintain radio contact between all stations during the test
Test blind register	Maintain a numbered register of every test blind, temporary spool, and isolation device installed

Common Mistake

Leaving test blinds and temporary spools in the system after hydrotest. Create a checklist of every temporary item installed, and verify removal before commissioning. I have seen plants start up with test blinds still in place.

Common Failures and Troubleshooting

Failure Mode	Likely Cause	Corrective Action
Pressure drop during hold	Leak at flange gasket, valve packing, or weld; or temperature change	Check all joints visually; verify temperature stability; re-torque flanges if needed
Flange leak	Incorrect gasket, uneven bolt torque, damaged flange face	Replace gasket, verify bolt tightening sequence per ASME PCC-1, check flange face for damage
Weld leak	Defective weld (porosity, incomplete penetration, crack)	Mark location, depressurize, repair per WPS, re-test
Threaded connection leak	Insufficient thread sealant, cross-threading	Disassemble, clean threads, re-apply sealant, reassemble and re-test
Pressure will not build	Vent left open, pump bypass open, large leak in the system	Systematic check of all vents, valves, and connections
Gauge reads erratically	Trapped air in the system	Depressurize, re-vent all high points, refill, re-pressurize
Pressure rises without pumping	Thermal expansion of water (ambient temperature increase)	Normal behavior; allow temperature to stabilize before holding

Temperature Compensation

A 1 deg C change in water temperature can cause a pressure change of approximately 1-3 bar in a rigid piping system. If the ambient temperature is rising during your hold period, you will see pressure creep upward without pumping. Schedule hydrotests during periods of stable temperature, or use a temperature-compensated recording system to distinguish thermal effects from actual leaks.

Documentation Requirements (Test Pack Contents)

A complete hydrotest package (often called the “test pack”) is assembled before the test and completed with results afterward. It becomes part of the permanent construction records and is reviewed during the piping inspection phase.

Document	Purpose
Test procedure	Approved procedure specifying test pressure, medium, hold time, and acceptance criteria
Test boundary drawing	P&ID or isometric marked with test boundaries, blind locations, gauge positions, and vent locations
Piping isometric(s)	All isometrics within the test boundary, with weld numbers identified
Weld map / weld log	List of all welds in the test section, cross-referenced to NDE reports
NDE reports	Radiographic, ultrasonic, or other NDT results for all welds per the inspection and test plan
Mill test certificates	MTCs (per EN 10204 3.1 or 3.2) for all pipes, fittings, flanges, and valves in the test boundary
Calibration certificates	Valid calibration records for all pressure gauges, temperature gauges, and chart recorders
Pressure-temperature chart	Continuous chart recorder or data logger output showing pressure and temperature throughout the test
Test blind register	Numbered list of all test blinds and temporary items, with sign-off for installation and removal
Hydrotest certificate	Final sign-off document recording pass/fail, signed by the test supervisor, client representative, and third-party inspector

Special Considerations

Stainless Steel Systems (Chloride Control)

Austenitic stainless steels (304, 316, 321, 347) and duplex grades are susceptible to chloride-induced stress corrosion cracking (SCC). The test water must have chloride content below 50 ppm for austenitic grades and below 25 ppm for duplex/super duplex. Use demineralized water or potable water with a verified analysis. Drain and dry the system promptly after testing. Do not leave stainless steel piping filled with test water for extended periods.

Subsea Pipelines

Subsea pipeline hydrotests follow DNV-ST-F101 (formerly DNV-OS-F101) and typically require a two-phase test: a strength test (24 hours at elevated pressure) followed by a leak test (24 hours at a lower pressure). The test water must be treated with oxygen scavenger and biocide if it will remain in the pipeline for an extended period (pre-commissioning water). Dewatering and drying follow the test.

High-Temperature Design Systems

When the design temperature is significantly above ambient, the stress ratio S_t/S_d can exceed 1.0, pushing the calculated test pressure well above 1.5x design. Check that this elevated test pressure does not exceed the pressure rating of the weakest component (often the flanges) at the test temperature. If it does, ASME B31.3 permits a reduced test pressure equal to the maximum allowable pressure at test temperature.

Large-Diameter and Long Pipelines

For long pipeline sections, the static head at the lowest elevation point adds to the test pressure. A 30-meter elevation difference adds approximately 3 barg of hydrostatic head. The total pressure at the lowest point must not exceed the yield strength of the pipe or the test limit of any component. If necessary, split the test into multiple sections at different elevations.

Applicable Standards Reference

Organization	Standard	Coverage
ASME	B31.1	Power piping design and testing
ASME	B31.3	Process piping design and testing
ASME	B31.4	Pipeline transportation systems for liquids
ASME	B31.8	Gas transmission and distribution piping
ASME	BPVC Section VIII	Fabrication, inspection, and testing of pressure vessels
API	510	In-service pressure vessel inspection, repair, and rerating
API	570	In-service piping inspection and hydrostatic testing
API	5L	Hydrostatic test requirements for PSL1/PSL2 line pipe
API	598	Valve inspection and testing (shell and seat)
ISO	14692	Testing for glass-reinforced plastic (GRP) piping
EN	13480	European requirements for metallic industrial piping
DNV	ST-F101	Submarine pipeline systems (subsea)

Alternatives to Hydrostatic Testing

When hydrostatic testing is not feasible (water damage risk, drying difficulty, or quick turnaround needed), alternative methods can be used:

Method	Principle	Pros	Cons
Pneumatic testing	Uses air/nitrogen instead of water	No drying required, quick return to service	Higher risk-compressed gas stores more energy
Radiographic (RT)	X-rays or gamma rays detect internal flaws	Finds internal defects without pressure	Does not verify pressure integrity
Ultrasonic (UT)	Sound waves detect internal defects	Precise flaw detection and sizing	Does not verify pressure integrity
Magnetic particle (MPI)	Magnetic flux reveals surface cracks	Fast, effective on ferromagnetic materials	Surface/near-surface only
Dye penetrant (DPI)	Dye seeps into surface cracks	Simple, cost-effective	Surface flaws only
Acoustic emission (AET)	Monitors stress-induced sound waves	Can test at lower pressures	Requires specialized equipment
Helium leak testing	Tracer gas detected by sensitive sensors	Extremely sensitive leak detection	Does not assess structural strength

Combination Testing

No single method replaces hydrostatic testing completely. For critical applications, combine multiple NDT methods to cover both defect detection and pressure integrity verification.

Watch the Video

Frequently Asked Questions

What is the standard hydrostatic test pressure for piping?

Per ASME B31.3 (process piping), the standard hydrostatic test pressure is 1.5 times the design pressure, adjusted for temperature. The formula is: P_test = 1.5 x P_design x (S_t / S_d), where S_t is the allowable stress at test temperature and S_d is the allowable stress at design temperature. For ASME B31.1 (power piping), the factor is also 1.5. For pressure vessels under ASME Section VIII, the factor is 1.3 x MAWP. The test must never exceed the yield strength of the weakest component in the system.

How long should a hydrostatic test be held?

Per ASME B31.3, the minimum hold time is 10 minutes at test pressure for piping systems. However, most project specifications require 30 minutes to 1 hour at test pressure after stabilization, followed by a visual examination of all joints at a reduced pressure (typically design pressure). For pipelines (ASME B31.4/B31.8), hold times of 4-24 hours are common depending on length and criticality. Subsea pipelines per DNV-ST-F101 typically require 24 hours for the strength test plus 24 hours for the leak test. Temperature stabilization before the hold matters because thermal expansion of the test medium can cause false pressure changes.

What is the difference between hydrostatic and pneumatic testing?

Hydrostatic testing uses water (an incompressible liquid) and is the preferred method. A leak releases minimal energy and the failure mode is a detectable drip, not an explosion. Pneumatic testing uses air or nitrogen (a compressible gas) and stores significantly more energy; a failure can cause a violent rupture. Pneumatic testing is only used when the system cannot tolerate water (moisture-sensitive, drainage impossible, or risk of freezing). Pneumatic test pressure is typically 1.1x design pressure (vs. 1.5x for hydrostatic) with additional safety precautions including exclusion zones and incremental pressurization.

When is a pneumatic test acceptable instead of a hydrostatic test?

Pneumatic testing may be used when: (1) the system cannot be filled with water due to structural support limitations (weight), (2) moisture contamination is unacceptable (e.g., oxygen, chlorine, instrument air systems), (3) the piping cannot be dried or drained adequately after test, or (4) freezing conditions make hydrotest impractical. Per ASME B31.3, pneumatic testing requires a documented risk assessment, reduced test pressure (1.1x design), a preliminary low-pressure leak test at 25 psig, incremental pressurization with hold periods, and safe evacuation of all personnel from the exclusion zone during pressurization.

What water quality is required for hydrostatic testing of stainless steel?

For austenitic stainless steel (304, 316, 321, 347) and duplex grades, the test water must have a chloride content below 50 ppm (below 25 ppm for duplex and super duplex) to prevent chloride-induced stress corrosion cracking. The recommended practice is to use demineralized water or potable water with a verified chemical analysis certificate. The pH should be between 6.0 and 8.0. After testing, the system must be drained and dried promptly. Do not leave stainless steel piping filled with test water for extended periods, as even low chloride levels can cause pitting at elevated temperatures.
