LEL & UEL: Flammable Gas Limits

Quick Reference

LEL (Lower Explosive Limit) = minimum gas concentration that can ignite (mixture is “too lean” below this) UEL (Upper Explosive Limit) = maximum gas concentration that can ignite (mixture is “too rich” above this) Explosions occur only when gas concentration is between LEL and UEL, with maximum force at the midpoint.

LEL and UEL for Flammable Gases

The three conditions required for an explosion:

1. Fuel — Combustible gas at proper concentration (between LEL and UEL)
2. Oxygen — Sufficient O₂ to support combustion
3. Ignition source — Spark, flame, or heat

Remove any one of these three elements and combustion cannot occur. This is the basis of every gas safety strategy: inerting removes the oxygen (see nitrogen purging), ventilation keeps fuel concentration below LEL, and hazardous area classification controls ignition sources.

Flammability Concepts

Term	Definition
Ignition Point	Temperature at which material ignites and continues burning
Flash Point	Lowest temperature at which a liquid generates enough vapor to form an ignitable mixture at the liquid surface
Autoignition Temperature (AIT)	Temperature at which a gas/vapor ignites spontaneously without an external spark or flame

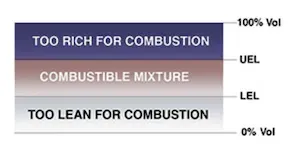

Flammable Range	Concentration range (LEL to UEL) where gas/vapor can ignite in the presence of an ignition source
NFPA 704	Fire diamond rating system (0—4, where 4 = severe hazard)
Vapor Density	Weight of gas relative to air (air = 1.0); determines whether gas rises or settles

Why LEL/UEL Matter in Practice

These numbers drive real decisions on site every day. Gas detectors alarm at a percentage of LEL — typically 10% LEL for the first alarm (warning) and 20% LEL for the second alarm (evacuation). Hot work permits require gas-free testing below 1% LEL before cutting or welding can start. Confined space entry permits require continuous monitoring with readings below 10% LEL throughout the work.

The flammable range (LEL to UEL) also determines how you purge equipment safely. When taking a vessel out of service, you can’t simply open it to air — the gas concentration will pass through the flammable range as it dilutes. The safe procedure is to displace the flammable gas with nitrogen (an inert gas) first, bringing the atmosphere below LEL while there’s no oxygen to support combustion. Only then do you introduce air.

Alarm Threshold

Gas detectors typically alarm at 20% of LEL to provide a safety margin before the explosive range is reached.

Pro Tip

Position LEL detectors based on gas density — install sensors low for heavier-than-air gases (propane, butane, H₂S) and high for lighter-than-air gases (hydrogen, methane). Getting this wrong means your alarm won’t trigger until gas has already accumulated to dangerous levels at breathing height.

Explosions occur only when gas concentration is between LEL and UEL, with maximum force at the midpoint. Gas detectors typically alarm at 20% of LEL to provide a safety margin before the explosive range is reached.

Lower Explosive Limit (LEL)

LEL is the minimum gas concentration (% by volume in air) that can ignite. Example: Methane LEL = 5% means concentrations below 5% are too lean to burn.

LEL Detection Methods

Method	Principle	Pros	Cons
Catalytic (Pellistor)	Oxidizes gas on heated catalyst bead; measures temperature change as electrical resistance	Broad-spectrum; responds to most combustible gases; most common in portable and fixed systems	Can be poisoned by silicones, lead, chlorinated compounds; needs O₂ to function (fails in inerted atmospheres)
Infrared (NDIR)	Measures IR absorption by hydrocarbon molecules at specific wavelengths	Not susceptible to poisoning; works in O₂-depleted atmospheres; long sensor life	Does not detect hydrogen or some small molecules; higher cost than catalytic
Electrochemical	Measures current generated by electrode reaction with the target gas	Highly selective; accurate for specific gases (H₂S, CO, O₂)	Affected by temperature and humidity; limited to specific gases
Semiconductor (MOS)	Gas adsorption changes electrical resistance of metal oxide surface	Very sensitive to low concentrations; low cost	Poor selectivity; temperature and humidity dependent; drift
PID (Photoionization)	UV lamp ionizes gas molecules; measures resulting ion current	Excellent for VOCs; detects sub-LEL concentrations (ppm range)	Effectiveness varies by ionization potential; UV lamp degrades; not selective
Ultrasonic	Detects high-frequency acoustic signature of pressurized gas leaks	Early outdoor leak detection; responds before gas reaches a detector; works in wind	Indirect measurement (detects leak, not concentration); false alarms from process noise

Field Note

Catalytic bead sensors need regular bump testing and calibration — I’ve seen detectors in the field that showed “0% LEL” while sitting in a 10% LEL atmosphere because the sensor was poisoned by silicones or lead compounds. Bump test at the start of every shift in hazardous areas; a green LED doesn’t mean the sensor works.

Factors Affecting LEL

Factor	Effect on LEL	Practical Note
Higher temperature	Lowers LEL (more volatile, more vapor generated)	Hot process lines produce more vapor — LEL thresholds are conservative because they are measured at 25°C
Higher pressure	Lowers LEL (denser gas, more molecules per volume)	Pressurized leaks from flanges and valve packing are more dangerous than atmospheric releases
Enriched oxygen	Lowers LEL (easier combustion)	O₂-enriched atmospheres near vents, O₂ analyzers, or oxy-fuel cutting equipment
Depleted oxygen	Raises LEL	Inerted vessels are below LEL even with residual hydrocarbons, as long as O₂ stays below ~8%
High humidity	Generally raises LEL (water vapor dilutes fuel)	Minor effect in most practical scenarios
Inert gas presence	Raises LEL (dilution by N₂, CO₂, etc.)	Basis of nitrogen inerting as a safety measure

Upper Explosive Limit (UEL)

UEL is the maximum gas concentration (% by volume) that can ignite. Above UEL, the mixture is too rich (insufficient oxygen to sustain combustion). Example: Methane UEL = 15%.

UEL Detection Methods

Same base technologies as LEL (catalytic, IR, electrochemical) but calibrated for higher concentration ranges. Catalytic sensors cannot measure above 100% LEL (they need oxygen to function). For over-range / high-concentration environments, additional methods are used:

Method	Application
Thermal conductivity (TC)	Measures thermal changes at high gas concentrations; common in combination units (catalytic for 0—100% LEL, TC for 0—100% volume)
NDIR (high range)	Infrared absorption calibrated for percent-volume measurement rather than % LEL
Paramagnetic O₂ sensors	Detect oxygen depletion as an indirect indication that the atmosphere is approaching or exceeding UEL
Gas chromatography (GC)	Laboratory-grade precision for analyzing exact gas composition; not real-time

Factors Affecting UEL

Factor	Effect on UEL	Practical Note
Higher temperature	Raises UEL (more vapor pressure extends upper range)	The flammable range widens at higher temperatures (LEL drops, UEL rises)
Higher pressure	May raise UEL (density and reaction kinetics effects)	High-pressure process environments have wider flammable ranges than ambient
Enriched oxygen	Raises UEL significantly (supports richer mixtures)	Critical consideration in oxy-fuel processes and medical facilities
Depleted oxygen	Lowers UEL	Narrowing the flammable range from the top
Inert gas presence	Lowers UEL (dilution narrows flammable range from top)	At sufficient inert gas fraction, LEL and UEL converge and no mixture is flammable

LEL is the minimum gas concentration that can ignite (mixture is “too lean” below), while UEL is the maximum (mixture is “too rich” above). Concentrations above UEL are not safe; gas dilution from ventilation or air movement can bring concentrations back into the explosive range. Always monitor, never assume.

LEL vs. UEL Comparison

Aspect	LEL (Lower Explosive Limit)	UEL (Upper Explosive Limit)
Definition	Minimum concentration to ignite	Maximum concentration to ignite
Below limit	Too lean to burn (safe)	N/A
Above limit	N/A	Too rich to burn (but can dilute to explosive range)
Between limits	EXPLOSIVE RANGE	EXPLOSIVE RANGE
Detection	Common; standard in all gas detection systems	Less common; relevant in high-concentration process environments
Management	Ventilation, monitoring, eliminate ignition sources	Ensure adequate O₂, prevent stratification

Above UEL Is Not Safe

Concentrations above UEL won’t ignite directly, but gas dilution (from ventilation, air movement, or dispersion) can bring concentrations back into the explosive range. Never assume “too rich” means safe.

Common Mistake

Relying on a single point gas detector for confined space entry. Gas concentrations stratify — LEL might be zero at detector height but explosive at the bottom of a tank or the top of a vessel. Always test multiple levels before entry and use continuous monitoring at the work location.

Hazardous Area Classification

LEL and UEL values drive hazardous area classification — the process of defining zones around process equipment where flammable gas may be present, and specifying what type of electrical equipment is allowed in each zone. Two classification systems are used worldwide.

IEC/ATEX Zone System (International)

Zone	Definition	Gas Presence	Example Locations
Zone 0	Explosive atmosphere is present continuously or for long periods	> 1,000 hours/year	Inside tanks, vessels, and piping containing flammable liquids or gases
Zone 1	Explosive atmosphere is likely to occur during normal operation	10—1,000 hours/year	Around pump seals, compressor seals, relief valve discharge, sample points, drain points
Zone 2	Explosive atmosphere is not likely during normal operation, but may occur briefly	< 10 hours/year	Areas surrounding Zone 1; well-ventilated areas near flanged connections
Non-hazardous	No explosive atmosphere expected	Negligible	Control rooms (with positive pressurization), offices, workshops

NEC/CEC Division System (North America)

Division	Definition	Roughly Equivalent To
Class I, Division 1	Flammable gas present during normal operation or frequently due to maintenance/leaks	Zone 0 + Zone 1
Class I, Division 2	Flammable gas present only under abnormal conditions (equipment failure, rupture)	Zone 2

Pro Tip

Many international projects in the Middle East, Asia, and Africa use the IEC Zone system, while North American projects follow NEC Divisions. Some EPC contractors classify the plant under both systems in parallel to satisfy both the local authority and the client’s home-country standards. Confirm early in FEED which system applies — equipment selection and procurement depend on it.

Gas Groups and Temperature Classes

Electrical equipment for hazardous areas is rated by gas group and temperature class. The gas group defines how easily the gas ignites (and how much energy it takes to propagate a flame), while the temperature class defines the maximum surface temperature the equipment may reach.

Gas Group (IEC)	Typical Gases	NEC Equivalent	Ignition Energy
IIA	Methane, propane, butane, gasoline vapors	Class I, Group D	Highest ignition energy (least sensitive)
IIB	Ethylene, hydrogen sulfide, diethyl ether	Class I, Group C	Medium
IIC	Hydrogen, acetylene, carbon disulfide	Class I, Group B (H₂) / Group A (C₂H₂)	Lowest ignition energy (most sensitive)

Temperature Class	Max Surface Temperature	Typical Gases with AIT in This Range
T1	450°C	Methane (AIT 537°C), propane (AIT 450°C)
T2	300°C	Butane (AIT 365°C), ethanol (AIT 363°C)
T3	200°C	Gasoline vapor (AIT ~280°C), hexane (AIT 225°C)
T4	135°C	Diethyl ether (AIT 160°C)
T5	100°C	Rarely encountered in standard oil and gas
T6	85°C	Carbon disulfide (AIT 90°C)

Equipment installed in a hazardous area must be certified for at least the gas group and temperature class of the gases present. A motor rated Ex d IIB T3, for example, is suitable for ethylene (Group IIB) atmospheres and has a maximum surface temperature of 200°C.

Le Chatelier’s Law for Gas Mixtures

Real process environments rarely contain a single pure gas. Refineries, petrochemical plants, and gas processing facilities handle streams with multiple flammable components. Le Chatelier’s mixing rule calculates the LEL (or UEL) of a mixture from the LEL values of each individual component.

Formula:

LEL_mix = 100 / (C₁/LEL₁ + C₂/LEL₂ + … + Cₙ/LELₙ)

Where:

• C₁, C₂, … Cₙ = concentration of each component as a percentage of the total combustible fraction (must sum to 100)
• LEL₁, LEL₂, … LELₙ = LEL of each pure component (% volume in air)

Example: A gas stream is 60% methane (LEL 5.0%) and 40% propane (LEL 2.1%) by volume of combustibles.

LEL_mix = 100 / (60/5.0 + 40/2.1) = 100 / (12.0 + 19.05) = 100 / 31.05 = 3.22% by volume in air

The same formula applies to UEL calculation by substituting UEL values.

Pro Tip

Le Chatelier’s law is an approximation that works well for most hydrocarbon mixtures at ambient conditions. It becomes less accurate for mixtures containing hydrogen (which has unusual combustion behavior) and at elevated temperatures or pressures. For critical safety calculations on hydrogen-rich streams, use experimental mixture data or consult NFPA 68/69.

Gas Testing for Work Permits

Gas testing is the practical application of LEL/UEL knowledge on site. Before any hot work, confined space entry, or equipment opening, a competent gas tester must verify the atmosphere using a calibrated gas detector.

Standard Gas Testing Requirements by Permit Type

Permit Type	LEL Requirement	O₂ Requirement	Toxic Gas Requirement	Testing Frequency
Hot work permit	< 1% LEL (gas-free)	19.5—23.5%	H₂S < 5 ppm; CO < 25 ppm	Before start; every 4 hours during work; after any interruption
Cold work permit	< 10% LEL	19.5—23.5%	Below OEL	Before start; every 4 hours
Confined space entry	< 10% LEL	19.5—23.5%	Below OEL	Continuous monitoring; test at top, middle, bottom
Equipment opening	< 1% LEL (gas-free)	19.5—23.5%	Below OEL	Immediately before opening

Gas Tester Qualifications

Requirement	Detail
Training	Formal gas testing course covering detector operation, calibration, bump testing, atmospheric hazards
Certification	Company or site-specific authorization; some regions require national certification (e.g., OPITO, OGUK)
Instrument	Calibrated multi-gas detector (O₂, LEL, H₂S, CO minimum); calibration current within 30 days or per manufacturer spec
Bump test	Positive functional check at start of every shift using known calibration gas
Record keeping	Gas test results recorded on the work permit with detector serial number, test time, and readings

Field Note

The most common gas testing failure I’ve encountered is testing from outside the vessel or pipe with a probe that doesn’t reach the low points. Heavier-than-air gases (propane, butane, H₂S) settle at the bottom, and a test taken at the manway might read zero while the bottom of the vessel is well above LEL. Use extension probes or tubing to sample at multiple elevations, including the lowest drain point.

LEL UEL Chart by Gas Type

The table below lists LEL and UEL values for common flammable gases found in oil and gas, petrochemical, and industrial facilities. Values are percentages by volume in air at 25°C and 1 atm. The vapor density column indicates whether the gas rises (< 1.0) or sinks (> 1.0) relative to air — a critical factor for detector placement and ventilation design.

Flammable Gas	LEL (%)	UEL (%)	Vapor Density (Air=1)	Autoignition Temp (°C)
Hydrogen	4.0	75.0	0.07	500
Methane (Natural Gas)	5.0	15.0	0.55	537
Propane	2.1	9.5	1.52	450
Butane	1.8	8.4	2.01	365
Ethylene	2.7	36.0	0.97	490
Acetylene	2.5	100.0	0.91	305
Ammonia	15.0	28.0	0.59	651
Carbon Monoxide	12.5	74.0	0.97	609
Hydrogen Sulfide	4.3	46.0	1.19	260
Gasoline Vapor	1.4	7.6	3.4—4.0	280
Ethanol (Alcohol)	3.3	19.0	1.59	363
Methanol	6.0	36.0	1.11	464
Isopropyl Alcohol	2.0	12.0	2.07	399
Ethylene Oxide	3.0	100.0	1.52	429
Propylene Oxide	2.0	37.0	2.00	449
Benzene	1.2	8.0	2.70	498
Toluene	1.1	7.1	3.14	480
Hexane	1.2	7.5	2.97	225
Pentane	1.4	7.8	2.49	260
Styrene	0.9	6.8	3.60	490

These values are measured under standard laboratory conditions and can shift under different temperatures and pressures (as described in the factors tables above). They serve as the baseline reference for gas detection system design, hazardous area classification, and safe work procedures across the oil and gas industry.
