Pipe Class vs Pipe Specification

Key Distinction

Pipe class = Project-specific document defining compatible components (pipes, fittings, valves, flanges) for a given service condition. Pipe specification = Standard document (ASTM, API, ASME) defining manufacturing requirements for pipes only.

Pipe classes reference pipe specifications. For example, a pipe class might specify “A106 Gr. B per ASTM A106.”

Pipe Class and Pipe Specification

These two terms cause confusion because they sound similar but serve different purposes in piping design and procurement.

What Is a Pipe Class?

A pipe class is a project-specific document that defines which materials and components can be used together in a piping system for a given set of service conditions. Every major oil company, EPC contractor, and refinery develops their own pipe classes.

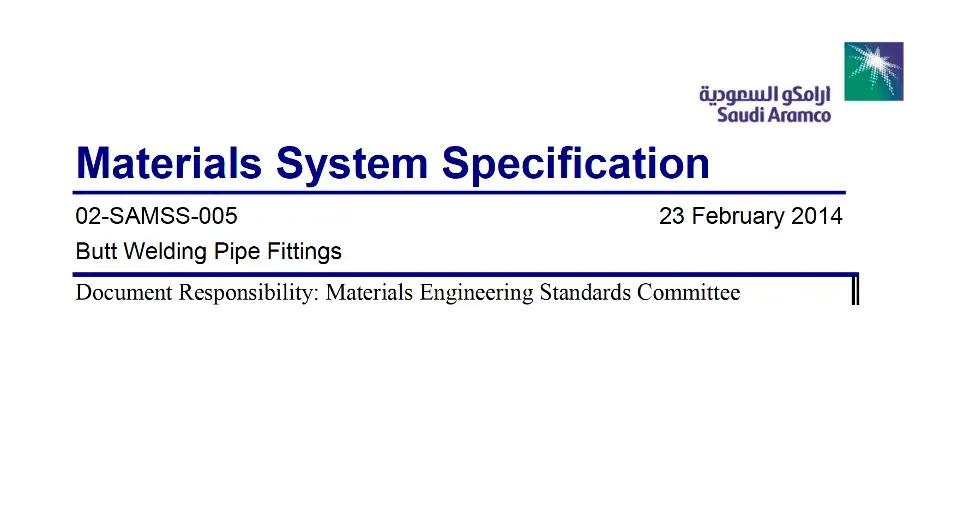

Saudi Aramco Pipe Class

Think of a pipe class as a “recipe” for a piping system. It specifies: use this type of pipe, with these fittings, these flanges, these valves, and these gaskets-all guaranteed to work together under the specified conditions.

Information in Pipe Classes

Element	What It Specifies
Material specs	ASTM/API grades for pipes, fittings, flanges, valves
P-T ratings	Maximum pressure and temperature for the class
Corrosion allowance	Extra wall thickness for expected corrosion
Size range	Applicable pipe diameters (e.g., 1/2” to 24”)
End connections	Welded, threaded, flanged-and when to use each
Component types	Elbows, tees, reducers, valves, gaskets included
Design codes	ASME B31.3, B31.1, etc.
Special requirements	Impact testing, sour service, coatings

Pro Tip

When reviewing an existing pipe class, always verify that the P-T rating on the line list matches the rating in the pipe class document. I’ve seen cases where the piping spec was upgraded mid-project but the line list wasn’t updated — resulting in materials being procured to the wrong class.

Pipe Class Naming Conventions

Every EPC contractor and owner company has its own naming system for pipe classes. The code is typically 2—4 characters that encode the material, pressure rating, and sometimes the service type or corrosion allowance.

Naming System	Structure	Example	Meaning
Letter-Number-Letter	Material group + Rating + Variant	A1A	Carbon steel, Class 150, standard
Letter-Number-Letter	Material group + Rating + Service	B3S	Low-alloy, Class 300, sour service
Alphanumeric	Material + Rating	CS150	Carbon steel, Class 150
Coded	Owner-specific numbering	P-1001	Per owner’s internal library

Common material group codes (vary by contractor):

Letter	Typical Meaning
A	Carbon steel (ASTM A106 Gr.B / A234 WPB)
B	Low-alloy steel (A335 P11 / P22)
C	Stainless steel 304/304L
D	Stainless steel 316/316L
E	Duplex stainless steel (2205)
F	Alloy 625, Alloy 825, or other nickel alloys

The second character typically encodes the ASME pressure class: 1 = Class 150, 2 = Class 300, 3 = Class 600, 4 = Class 900, 5 = Class 1500, 6 = Class 2500. The third character distinguishes variants within the same material and rating — for example, different corrosion allowances, different service conditions (sour vs. non-sour), or different temperature ranges.

Common Mistake

Assuming pipe class codes are universal across projects. “A1A” at one EPC contractor may mean carbon steel Class 150 with 3.0 mm corrosion allowance, while “A1A” at another contractor means carbon steel Class 150 with 1.6 mm CA. Always verify against the project-specific piping class index — never carry assumptions from a previous project.

Break Sizes and Connection Transitions

Pipe classes define “break sizes” — the diameter thresholds where the connection type changes. Below the break size, socket weld (SW) or threaded (THD) connections are used for cost and ease of fabrication. Above the break size, butt weld (BW) connections are required for integrity.

Typical Break Size Rule	Small Bore	Large Bore
Standard service	≤ 1-1/2” (DN 40): SW or THD	≥ 2” (DN 50): BW
Sour service (NACE)	≤ 1-1/2”: SW only (no threaded)	≥ 2”: BW
High-pressure (Class 900+)	≤ 3/4” or none: BW or SW only	All sizes BW
Utility (water, air)	≤ 2”: THD or grooved	≥ 2-1/2”: BW or grooved

The break size also affects the flange type. Below the break size, SW flanges (per ASME B16.5) are typical; above it, weld neck (WN) flanges are standard. Rating changes at specific sizes are also common — for example, some pipe classes use forged steel fittings per ASME B16.11 (3000 lb or 6000 lb) below the break, and ASME B16.9 butt weld fittings above it.

Sample Pipe Class Excerpt

Below is a simplified excerpt from a typical pipe class (class “A1A” — carbon steel, Class 150, general hydrocarbon service). A real pipe class would include all sizes from 1/2” to 24” and reference project-specific notes.

Component	Size ≤ 1-1/2”	Size ≥ 2”
Pipe	A106 Gr.B Smls, Sch 80 (SW ends)	A106 Gr.B Smls, Sch 40 (BE)
90° Elbow	A105 forged, 3000 lb SW per B16.11	A234 WPB, LR BW per B16.9
Tee	A105 forged, 3000 lb SW per B16.11	A234 WPB, BW per B16.9
Reducer	A105 forged, 3000 lb SW per B16.11	A234 WPB, concentric/eccentric BW per B16.9
Flange	A105, Class 150, SW, RF per B16.5	A105, Class 150, WN, RF per B16.5
Gasket	Spiral wound, SS 304 + graphite, per B16.20	Spiral wound, SS 304 + graphite, per B16.20
Bolting	A193 B7 studs / A194 2H nuts	A193 B7 studs / A194 2H nuts
Gate Valve	A105 body, Class 150, SW per API 602	WCB body, Class 150, BW per API 600

Notice how the pipe schedule changes at the break size (Sch 80 for small bore, Sch 40 for large bore). Small bore uses heavier schedule because the absolute wall thickness is thin at small diameters, and socket weld fabrication is less forgiving than butt weld.

Who Issues Pipe Classes?

Pipe classes are developed by the engineering team of the EPC contractor or owner company. Key contributors:

Role	Contribution
Piping Engineer	Leads development; defines materials, P-T ratings, component types
Process Engineer	Provides fluid data, operating conditions
Materials Engineer	Advises on corrosion resistance, material compatibility
QA/QC Engineer	Reviews for standards compliance

Major operators (Shell, BP, Saudi Aramco, ExxonMobil) maintain standard pipe class libraries that get adapted for each project. ASME and API codes provide the baseline, but individual companies add their own requirements based on decades of field experience.

Service-Specific Pipe Classes

A single project may have 15—50+ pipe classes, each tailored to a specific combination of fluid, temperature, pressure, and corrosion conditions. Common service categories include:

Service Category	Typical Material	Special Requirements
General hydrocarbon	Carbon steel (A106 Gr.B)	Standard CA (1.6—3.0 mm)
Sour service (H₂S)	Carbon steel with HIC/SSC resistance	NACE MR0175 compliance; max hardness 22 HRC; no threaded connections; PWHT mandatory
High temperature (> 400°C)	Cr-Mo alloy (A335 P11, P22, P91)	Creep-rated; PWHT per code; stress analysis critical
Low temperature (< -29°C)	Carbon steel with impact testing (A333 Gr.6) or stainless steel	Charpy impact test at design temperature
Corrosive (acids, chlorides)	316L SS, duplex 2205, Alloy 625	Material selection per corrosion study; potential hardness testing requirements
Utility (water, air, N₂)	Carbon steel or galvanized	Lower cost; may allow threaded connections at larger sizes; relaxed NDT requirements
Steam	Carbon steel or Cr-Mo	Per ASME B31.1 (if power piping); condensate drainage provisions

Field Note

On a project in the Middle East, the client had specified 22 pipe classes in the FEED phase. By the end of detailed engineering, we were at 41 classes because the corrosion engineer kept identifying new service conditions that didn’t fit the existing classes. Every new class means a new procurement item, new MTOs, and new inventory to track. Negotiate the class count early and push back on classes that differ by only one or two parameters — it’s usually cheaper to upgrade to the more conservative class than to manage a separate procurement stream.

Do Pipe Classes Specify Pipes Only?

No-that’s the key point. A pipe class covers the entire “system” of compatible components:

piping materials

Component	What the Pipe Class Specifies
Pipes	Material (e.g., A106 Gr.B), schedule, applicable ASTM spec
Fittings	Material (e.g., A234 WPB), ratings, dimensions per ASME B16.9/B16.11
Valves	Type (gate, globe, check), class, materials, end connections
Flanges	Type (WN, SO, blind), rating, face type (RF, RTJ)
Gaskets	Type (spiral wound, ring joint), material
Bolting	Stud bolt and nut grades (e.g., A193 B7 / A194 2H)

This is why pipe classes are so valuable-they ensure all the pieces fit together mechanically, thermally, and chemically.

Common Mistake

Assuming that matching material grades means components are compatible. A106 Gr.B pipe and A234 WPB fittings are chemically similar, but if the fittings are Class 3000 forged and the pipe is Sch.40, you’ve created a pressure mismatch. Always verify that wall thicknesses and pressure ratings align across all components.

What Is a Pipe Specification?

A pipe specification (pipe spec) is a manufacturing standard issued by organizations like ASTM, API, or ASME. It defines how pipes must be made, tested, and certified-independent of any particular project.

When you see “ASTM A106 Grade B” on a mill test certificate, that’s referring to a pipe specification. The spec defines everything the manufacturer needs to know:

Information in Pipe Specifications

Element	What It Defines
Material grade	Chemical composition, mechanical properties
Dimensions	OD, wall thickness, tolerances per ASME B36.10
Manufacturing	Seamless vs. welded, ERW, SAW
Mechanical properties	Tensile strength, yield strength, elongation
Testing	Hydrostatic test, NDT requirements
End finish	Plain end, beveled, threaded
Marking	Required stenciling/stamping

The key distinction: a pipe specification applies universally to all pipes made to that standard, regardless of project. A pipe class is project-specific and references pipe specifications.

Who Issues Pipe Specifications?

Unlike pipe classes (project-specific), pipe specifications come from standards organizations:

Source	Examples
ASTM International	A106, A312, A335, A333 (material specs)
API	5L (line pipe), 5CT (OCTG)
ASME	B36.10/B36.19 (dimensions), B31.x (design codes)
EN (European)	10216, 10217 (seamless/welded tubes)

These organizations develop consensus standards through technical committees. The resulting specs are used globally-an A106 pipe from China must meet the same requirements as one from Germany.

Major Standards Organizations by Region

Region	Key Organizations	Common Pipe Specs
USA	ASTM, API, ASME, AWWA, MSS	A53, A106, A312, API 5L
Europe	CEN, DIN, BSI, AFNOR	EN 10216, EN 10217, EN 10220
Japan	JIS, JPI, JWWA	JIS G 3452, JIS G 3454
Korea	KATS (KS standards), KGS	KS D 3507, KS D 3562
China	SAC (GB standards), CISA	GB/T 8163, GB/T 9711

For cross-reference between US and European pipe specifications, see the equivalent grades article.

Specifications for Other Piping Products

Yes-every piping component has its own set of standards:

Component	Key Specs
Fittings	ASME B16.9 (BW), ASME B16.11 (forged)
Flanges	ASME B16.5 (up to 24”), ASME B16.47 (26”+)
Valves	API 6D, API 600, API 602, ASME B16.34
Gaskets	ASME B16.20 (metallic), ASME B16.21 (non-metallic)
Bolting	ASTM A193/A194 (high temp), ASTM A320 (low temp)

A pipe class is a project-specific document that defines compatible components for a given service condition, while a pipe specification is a universal manufacturing standard issued by bodies like ASTM or API. Pipe classes reference pipe specifications; for example, a pipe class might specify “A106 Gr. B per ASTM A106.” The pipe specification ensures quality pipe; the pipe class ensures that pipe works with everything else in the system.

Summary: Pipe Class vs. Pipe Specification

Aspect	Pipe Class	Pipe Specification
Issued by	EPC contractor or owner company	Standards body (ASTM, API, EN)
Scope	All piping components (pipe, fittings, valves, flanges, bolting)	Pipes only
Purpose	Ensure system compatibility for specific service	Define manufacturing requirements
Project-specific?	Yes	No (universal standard)
Contains	Material callouts, P-T ratings, component types, connection methods	Chemical composition, mechanical properties, testing, tolerances
Used by	Design engineers, procurement	Manufacturers, QC inspectors

The relationship: A pipe class references pipe specifications. When a pipe class says “Pipe: A106 Gr. B, Sch. 40,” it’s calling out the ASTM A106 pipe specification and adding project-specific requirements (schedule, size range, corrosion allowance).

Together, the pipe specification ensures you get quality pipe, and the pipe class ensures that pipe works with everything else in the system.

Field Note

During receiving inspection, always verify that incoming materials match both the pipe specification (on the MTR) and the pipe class (on the purchase order). I’ve seen compliant A312 pipe rejected on-site because the procurement team ordered it to the wrong pipe class — same material spec, but wrong wall thickness for the application.

Developing Pipe Classes for a New Project

Pipe class development typically starts during FEED (Front-End Engineering Design) and is finalized during detailed engineering. The process follows a logical sequence, with inputs from process, materials, and piping engineering.

Step	Activity	Input	Output
1. Process data	Process engineer provides line list with fluid, operating and design pressure/temperature, flow regime	P&IDs, process data sheets, HAZOP output	Preliminary line list
2. Material selection	Materials/corrosion engineer selects base material per fluid compatibility, corrosion rate, and design life	Corrosion study, fluid composition (H₂S, CO₂, chlorides), NACE requirements	Material selection report
3. Rating selection	Piping engineer selects ASME pressure class based on design P-T conditions	ASME B16.5 P-T rating tables, design conditions from process	Pressure class per line
4. Component specification	Piping engineer defines all components (pipe, fittings, flanges, valves, gaskets, bolting) for each class	ASTM/API material specs, ASME dimensional standards, valve standards	Draft pipe class sheets
5. Review	Multi-discipline review (process, materials, piping, QA/QC)	Draft pipe class	Approved pipe class
6. Line class assignment	Each line on the P&ID is assigned a pipe class code based on its service conditions	Finalized pipe classes, line list	Updated line list with class codes

After the pipe classes are finalized, they feed directly into piping isometric generation, material take-offs (MTOs), and procurement. Any change to a pipe class after MTOs are issued triggers a cascade of revisions, so getting the classes right during engineering is critical.

Pro Tip

Standardize early and standardize aggressively. The fewer pipe classes on a project, the simpler the procurement, warehousing, and construction. Before creating a new class, check whether an existing class at a slightly higher rating or with a marginally more conservative material could serve the same purpose. A Class 300 carbon steel class can cover both Class 150 and Class 300 service lines — the material cost increase is modest compared to the overhead of managing two separate classes through procurement and construction.
